001. Symbol Tool

Developer // airc.digital

OS // MAC - Windows

Language // English - Spanish - French - German - Italian - Portuguese

Version // 001.01.01 - from Archicad v.25 & onwards

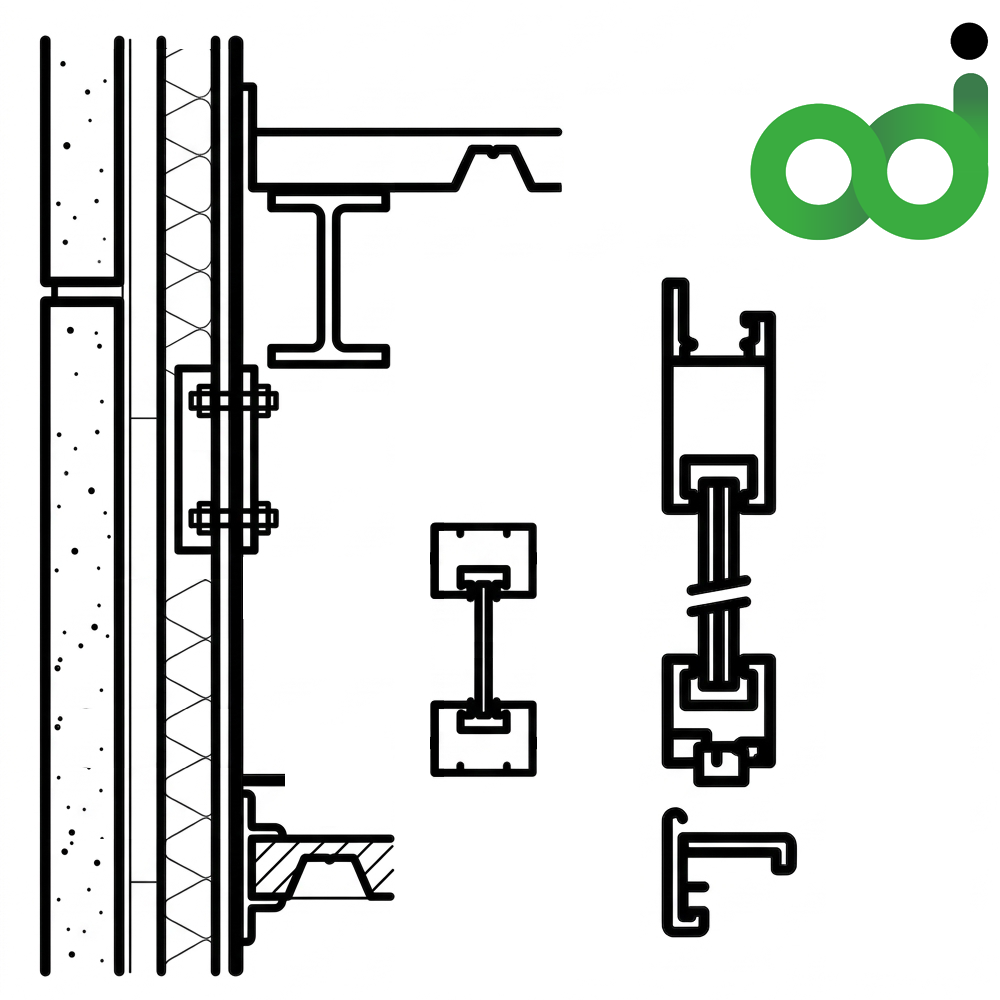

Description // The Symbol Tool transforms how to approach detailing and graphical legends by generating live 2D and 3D representations of the custom complex profiles in the project.

• Dynamic Profile Rendering: display 2D and 3D representations of any Archicad complex profiles with partial structure component visibility, parametrically responsive in any kind of view.
• Automated Component tags: It generates different types of leader types and indexed heads mapped directly to the individual skins of the profile.

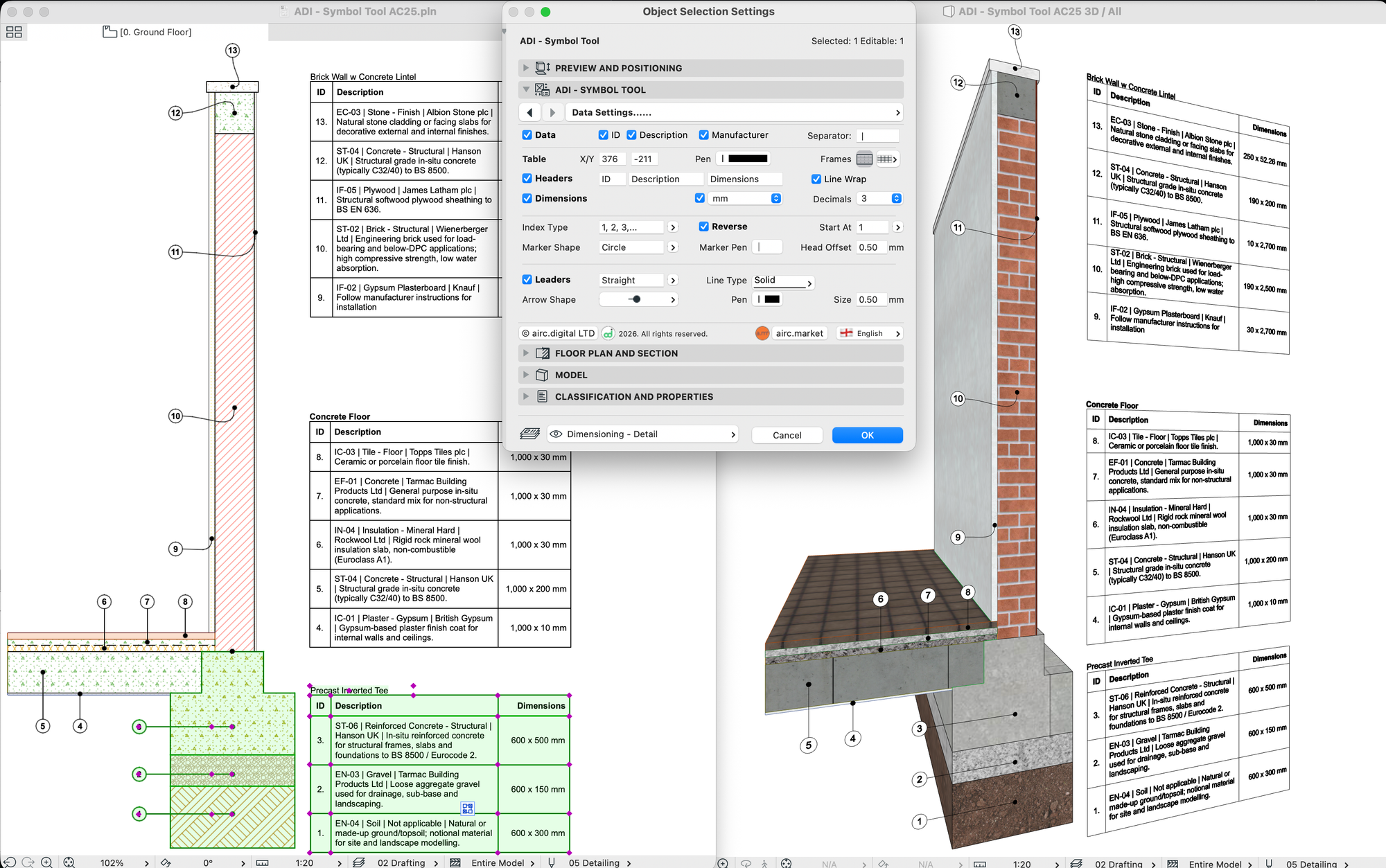

• Live Data Tables: It automatically pulls skin Building material ID, Name, Description, manufacturer and thicknesses into a customisable table/legend.

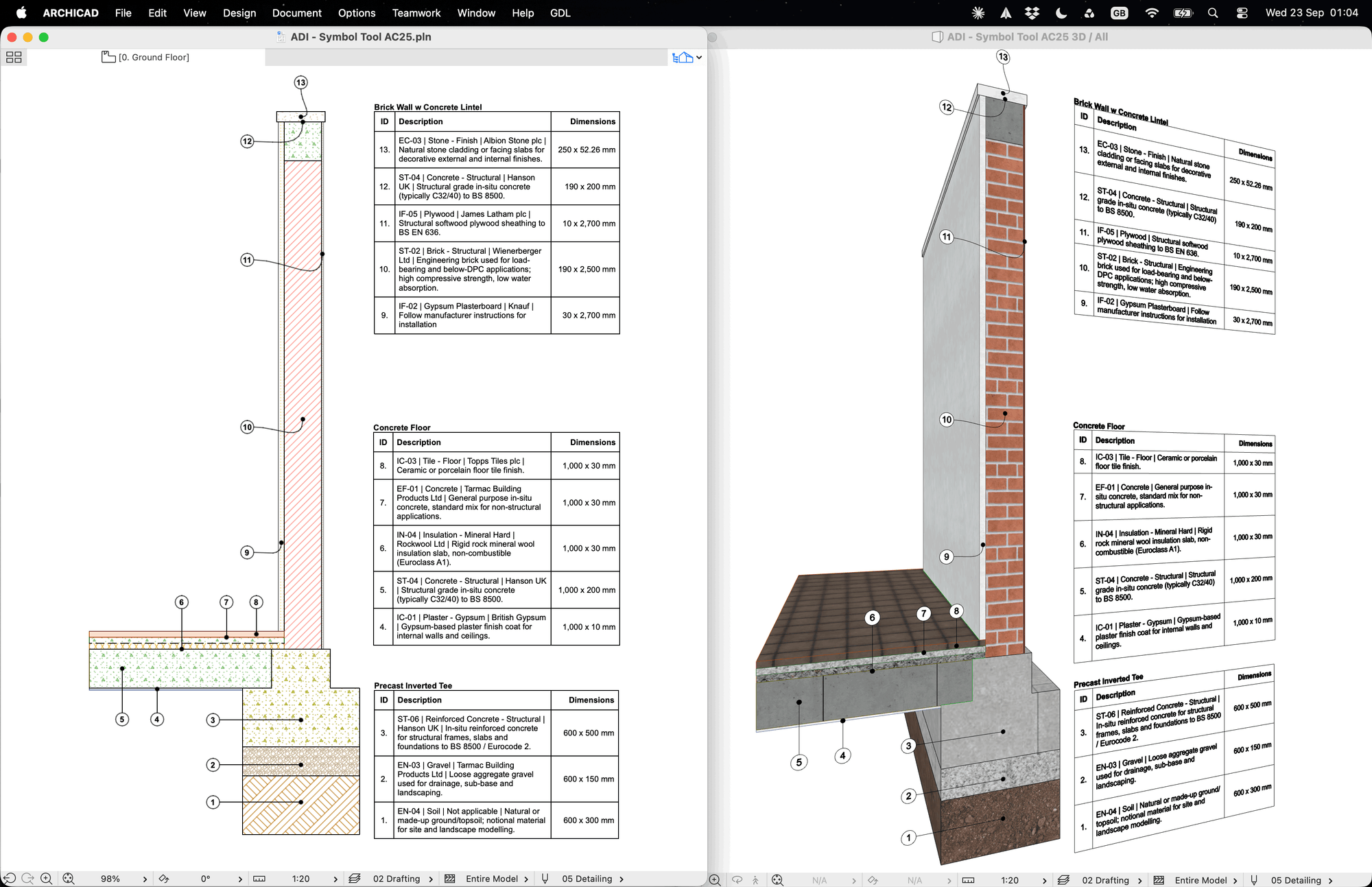

• 2D & 3D representations: The same styling, numbering, and table formatting is generated in both the 2D plan and the 3D window.
• Dimension References: Generate automatic hotlines and hotspots for bounding boxes, origin and vertices . This provides references for precise dimensions for any selected profile.

It is exceptionally useful for creating comprehensive detail blocks and visual legends based on complex profiles, ensuring the annotations and component geometries remain synced with your actual BIM data.

Download DEMO version.

Price // £49 (GBP) + VAT if applicable

Licensing // The price is for one per Archicad license.
