014. Surfaces Legend

Developer // airc.digital

OS // MAC - Windows

Language // English - Spanish - French - German - Italian - Portuguese

Version // 001.01.01 - from Archicad v.25 & onwards

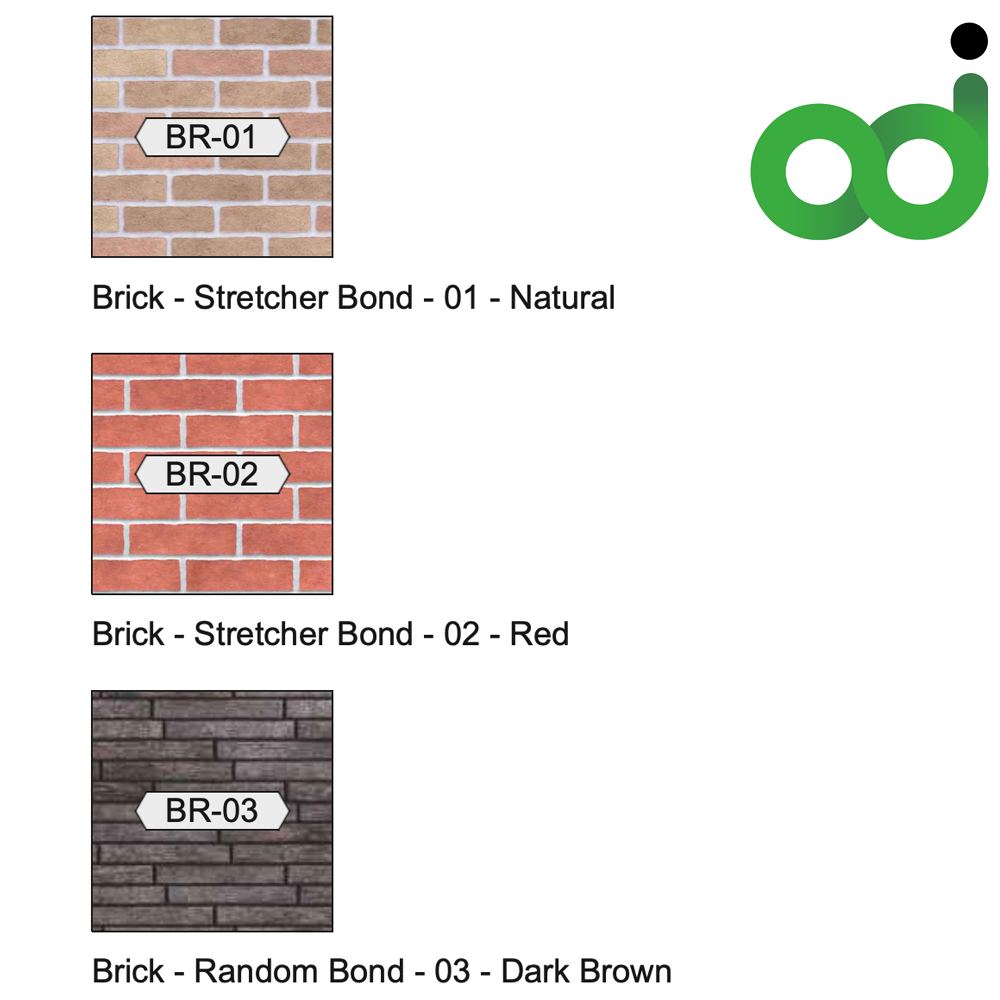

Description // The Surfaces Legend is a GDL object that automates project surface data compilation in Archicad, replacing manual material schedules with synchronised 2D and 3D legends..

• Data Extraction & Display: Paginates project surfaces. Displays texture previews or RGB solid colours alongside custom descriptions, trimming characters, and texture dimensions.
• 2D/3D Synchronisation: Maintains identical layouts across Floor Plans and 3D Views. Features horizontal or vertical 3D orientation and adjustable 3D extrusion thickness.
• Typography & Formatting: automatic surface name labels with full text style controls..
• Marker Palette: includes 18+ ID geometries (Circle, Square, Hexagon, Pointed Rectangles, etc.) with independent labelling settings.
• Interactive Editing: 2D and 3D on-screen hotspots for legend graphical adjustments, text position, item spacing, and block width.

It replaces disconnected text blocks and fills with a single, auto-updating element, providing company graphic standards via a structured interface. It eliminates discrepancies by syncing alignment, marker dimensions, and swatches between 2D documentation and 3D renders, reducing the multiple manual drafting steps that would involve creating surface legends.

Download DEMO version.

Price // £19 (GBP) + VAT if applicable

Licensing // The price is for one per Archicad license.
